Careful design and high quality manufacture throughout ensure long service life and optimum economy. Mounting dimensions fully in accordance with ISO 6432 and CETOP RP52P greatly simplifies installation and world-wide interchangeability.

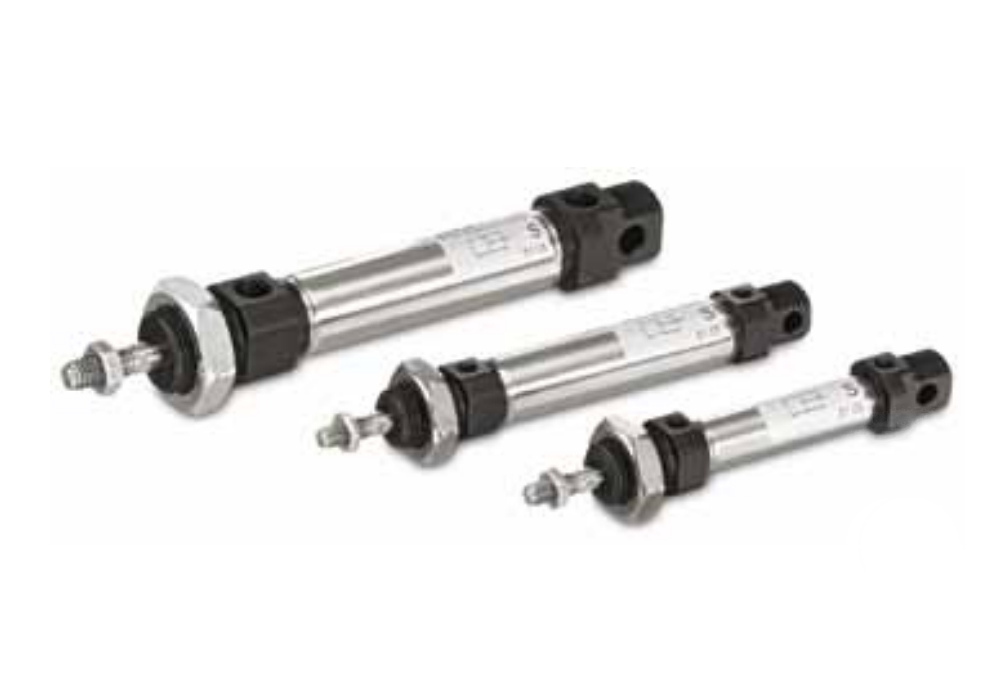

Mini cylinder according to ISO 6432
Available in 10 to 25 mm bores
Corrosion resistant design and low weight construction
Magnetic piston as standard
End stroke buffers for long service life
Parker’s P1Q series cylinders provide an economical, compact design suited for a variety of applications. With its modular flexibility, the P1Q will provide the ideal solution machine builders need today. The P1Q series is available in 10 bore sizes from 12 mm to 100 mm and standard strokes from 5 mm to 100 mm.
The cylinder is supplied in a choice of magnetic or non-magnetic function, the non-magnetic version offers very short axial dimensions. For optimum compactness the P1Q range is supplied with female piston rod thread. The P1Q provides quieter operation due to its built in buffer cushioning which is standard on all bore sizes. Included within the magnetic versions bores 32 - 100 mm is a teflon piston wear ring providing superior life.
Double Acting/Non Magnetic - Female Threaded Piston Rod
ISO 15524 - o20 to 100
o12 & 16 not in the ISO standard
Double-acting with adjustable end cushioning
With magnetic piston for position sensing.
Long-Stroke Cylinders for stroke lenghts up to 41 m.
Cushioning system for cycle time optimization (on request)
Clean room cylinders
ATEX-Version
Stainless steel screws
Slow speed lubrication
Viton® seals
Both air connections on one end
Air connection on the end-face
Integrated Valves
End cap can be rotated 4 x 90° to position air connection as desired
Free choice of stroke length up to 6000 mm, Long-Stroke version (Ø50-80mm) for stroke lengths up to 41 m

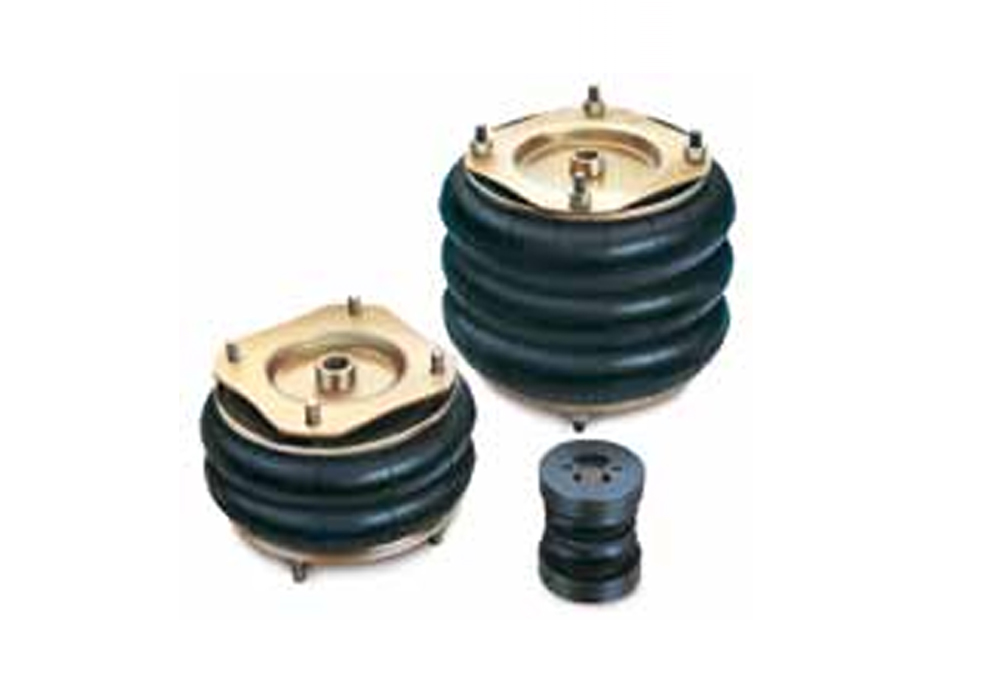

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
10 sizes, diameters 70-660 mm
Strokes from 45 to 375 mm
Single, double or triple convolutions
High thrust and frictionless movement
Maintenance free
The P1F Series meets the specifications of the ISO 15552 standard. This means full interchangeablity to any cylinder anywhere around the globe. The P1F will be available throughout the extensive worldwide Parker Hannfin Organisation - for the benefit to you and your customers.
The-Rods design
Bore sizes 160 - 320 mm
Stroke up to 2300 mm
Corrosion resistant design
Stainless Steel cushioning screws on same side
Adjustable pneumatic cushioning
Full range of mountings
Full range of drop-in sensors

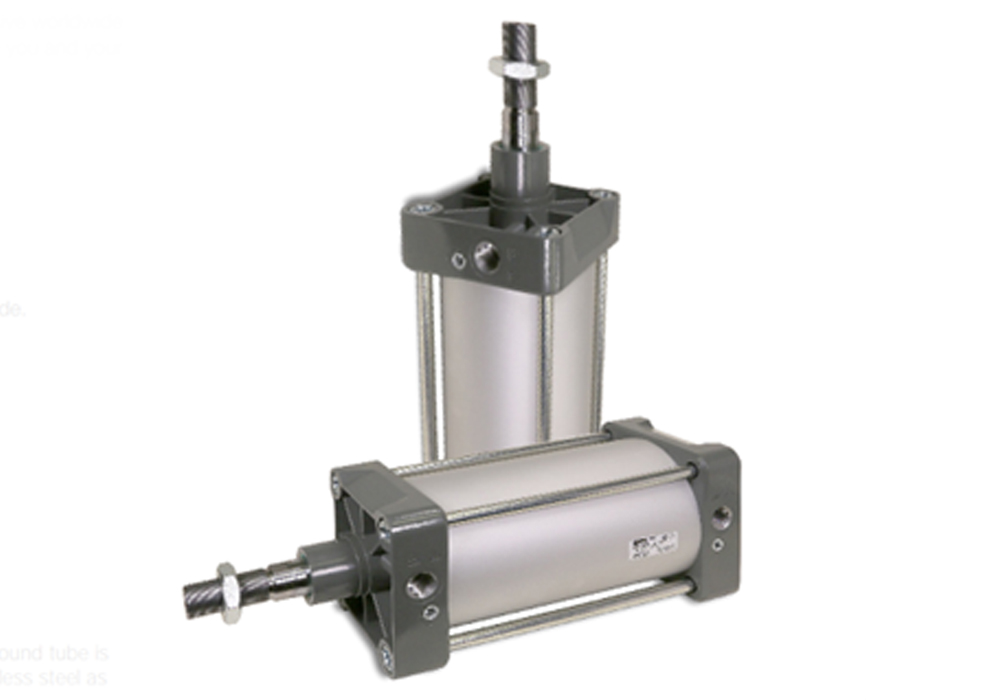

Tie-Rods round profile - P1F-T, P1F-N
Tie-Rods design for heavy duty appl;ications. Round tube is made in anodised aluminium: Tie-Rods in stainless steel as standard. Bore Sizes ∅32 to ∅125 mm, Large bore sizes ∅160 to ∅320 mm

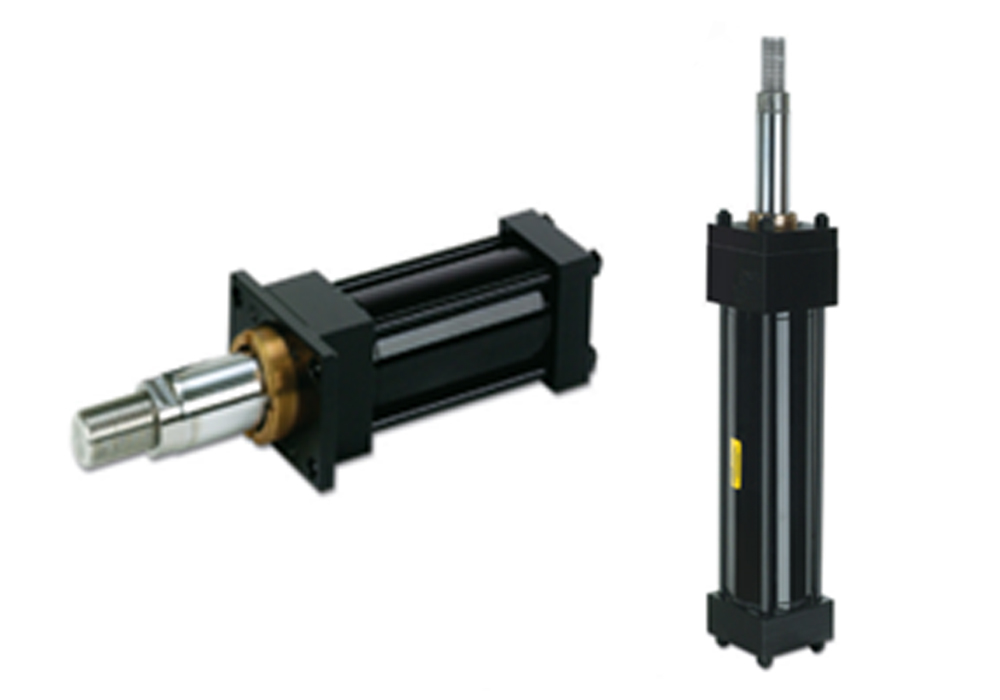

When the job calls for reliable, heavy-duty performance, specify series 2A, A 100,000 psi yield strength chrome-plated, caste-hardened piston rod. A 125,000 psi yield strength rod-end stud with rolled threads. 100,000 psi yield strength tie rods. With construction like this, the Parker Series 2A is rated for air service to 250 psi. This is one heavy-duty air cylinder that's really heavy duty.
They're truly premium quality cylinders, factory prelubricated for millions of maintenance-free cycles. And to make sure every cylinder is premuim quality, we subject each and every one - not just batch samples - to tough inspection and performance tests.
