With their highly compact, weight-optimised design, mini power packs are designed for a wide range of applications. They provide a flow rate from 0,24 lpm to a maximum of 4 lpm. The portfolio includes hydraulic power packs from simple holding functions in reversing mode, simple lifting/lowering functions to special power packs for safety brakes for cranes, lifts and winches.

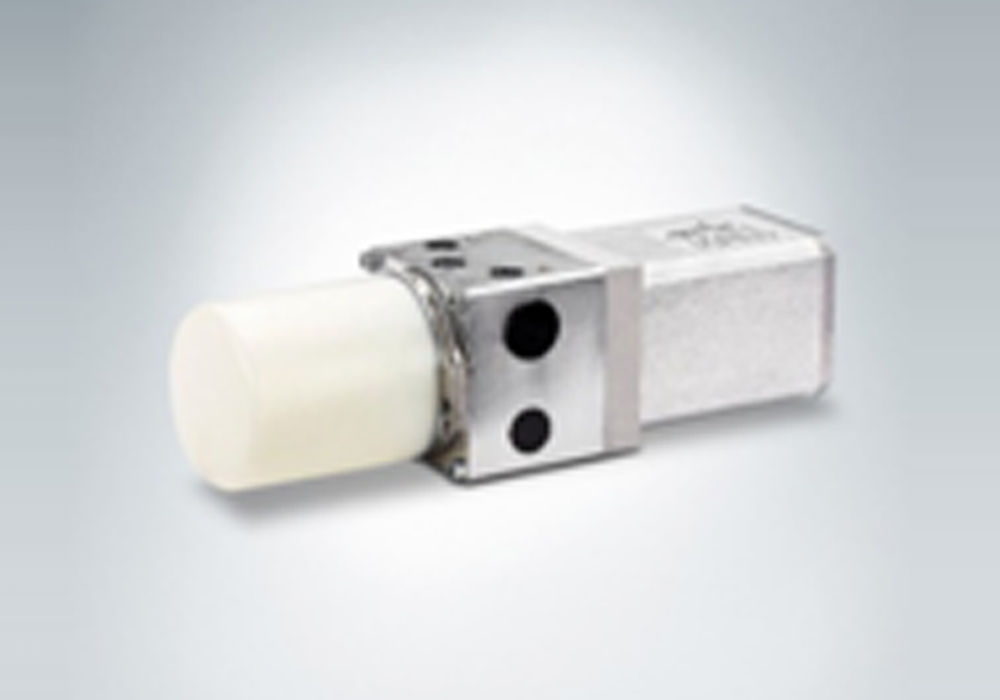

In this mini power pack, our well-proven radial piston pump from automotive engineering is integrated directly into the bell housing. As oil tank the unit has a round transparent tank with a M8x1 filler plug.
Flow rate: max. 1 l/min
Operating pressure: max. 200 bar
The type HR080 micro hydraulic power pack features high pressure in the smallest space, with the option to use any installation position. The reversing function is performed by reversing the direction of rotation of the motor. A directional valve is not needed. The motor is protected from overload by an integrated temperature switch. This hydraulic power pack is equipped with a DC or AC motor.
Operating pressure: max 210 bar
Flow rate: max. 0.52 l/min
Tank volume: 0.3 L
Weight: 4 kg
The type HR120 mini hydraulic power pack features high pressure in the smallest space, with the option to use any installation position. The reversing function is activated by reversing the motor’s direction of rotation. No directional valve is required. The motor is protected from overloads by a built-in temperature switch.
Max. operating pressure: 210 bar
Max. flow rate: 0.52 lpm
Tank volume: 0.7 L
Weight: 5.5 kg
The mini hydraulic power unit type A is characterized by its modular design. In the power pack, an external gear pump is flanged to the equipment carrier and the oil reservoir is designed as a round plastic tank with an M 14x1.5 filler plug. The power unit is mainly used in automotive engineering, aviation, floor-lock systems as well as in decentralized hydraulic control systems.
Max. operating pressure: 210 bar
Max. flow rate: 3 lpm
Use volume: 0.2 - 0, 8 l
Directional seated valves have zero leakage. Depending on the valve type, actuation is electromagnetic, pressure-actuated, mechanical or manual. The range includes seated valves and valve combinations. Directional spool valves are also a type of directional valve. They control the direction of movement and the velocity of single and double-acting hydraulic consumers. The range includes on/off directional spool valves, proportional directional spool valves and valve combinations.

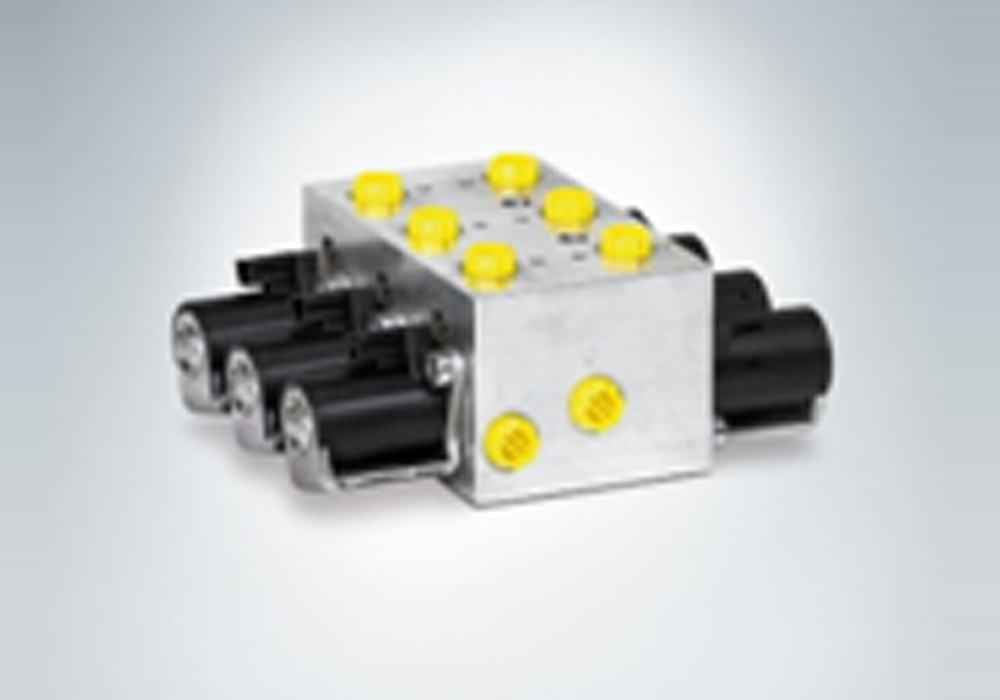

The SLC1 chained valves are a combined design consisting of seated valves and dual check valves. They can be used to hold hydraulic actuators in position for long periods of time. Restrictor check valves are mounted on the cylinders for speed adjustment.
Flow rate: max. 1 lpm
Operating pressure: max. 150 bar
The TLC3 series connection add-on valve is a combined design consisting of a slide valve and a dual check valve. It can be used to hold hydraulic actuators in position for long periods of time. The built-in T-throttles also allow the user to pre-set the speed of the actuators.
