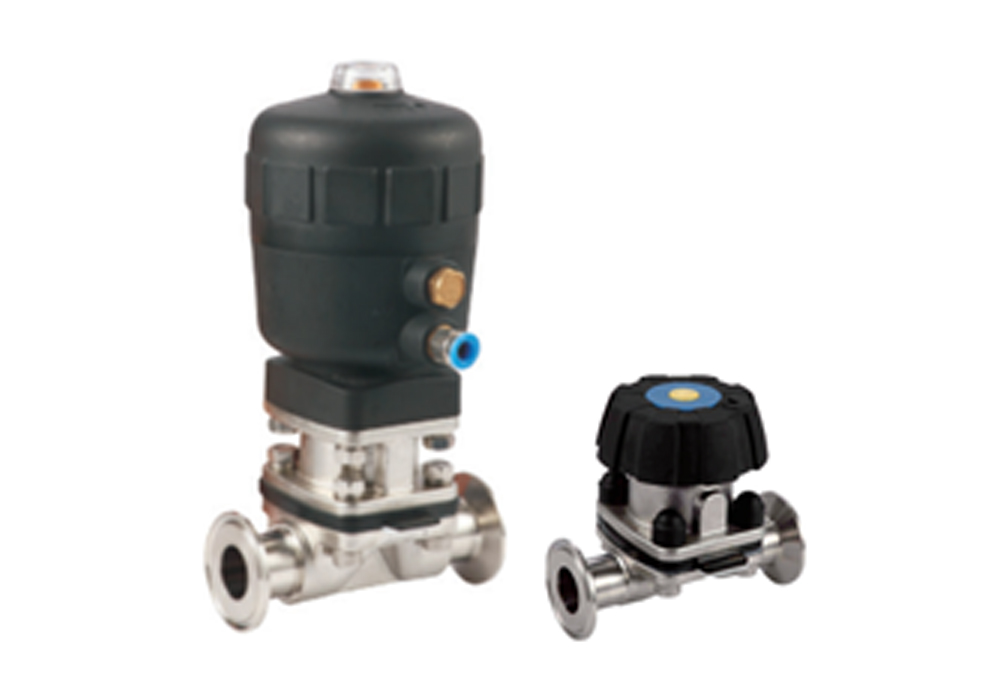

Diaphragm valve is a linear motion valve used to start/stop and control fluid flow.
Diaphragm valves have the advantage of higher flow rate and lower residue.
Diaphragm valves are excellent for controlling the flow of fluids containing suspended solids and offer the flexibility of being installed in any position.
Pharmaceutical
Food and Dairy
High purity water systems
Bioscience
Chemical
Cosmetics
Healthcare
Working pressure: 0-0.8Mpa
Nominal pressure: PN 1.6Mpa
Body material: 06Cr19Ni10(304), 022Cr17Ni12M02(316L)
Sealing material: EPDM+PTFE
Connection dimensions: ISO1127, ASEM BPE
Diameter: DN8-50(ISO1127), DNO.5"-2" (ASEM BPE)
Connection mode: clamped, welded
Driving mode: Manual, Pneumatic
Surface treatment: Mechanical polishing
Surface finish: Ra0.4um
Water distribution pipes
Industrial cleaning machines
Sterilizers, Boilers
Air conditioners, Water filters
Medical Equipments, Vacuum packing
Actuator Type: Double Acting-Rack & Pinion Type
Operating Media: Compressed Dry Air
Operating Pressure: 4-7kg/m
Rotating Angle: 90° ±3"
Temperature: -10°C-90°C
Max Pressure: 0.98MPa (10kg/)
Max Temperature: 90°C
End connection: KS B 2308 10K FLANGED BALL VALVE
Material:
FCD450/Body, S45C/Ball, PTFE/Seat
SCPH2/Body, SCS13A/Ball, PTFE/Seat
SCS13A/Body, SCS13A/Ball, PTFE/Seat
SCS14A/Body, SCS14A/Ball, PTFE/Seat
S. Solenoid Valve
R. Air Filter Regulator
L. Limit Switch Box
Speed controller
One touch Fitting(60,80)
EP Positioner
