5 piston design
Wide range of displacement
Starting torque from 90-95% theoretical
Total efficiency up to 96%
Resistance to thermal shocks ΔT=176°F
Speed feedback accessories optional
Hydraulically balanced 10 and 14 piston twin row design
Wide range of displacements
Starting torque from 91% theoretical
Total efficiency up to 96%
Speed feedback accessories optiona
5 piston design
Displacement ratios of 1:2 or 1:3
Starting torque from90-95% theoretical
Total efficiency up to 96% Resistance to thermal shocks ΔT=176°F
Speed feedback accessories optional
Single and two-speed styles
Rugged, compact design
Unique IGR power element
Integral selector valve on two-speed styles
Maximum pressure 210 bar (3000 psi)
High volumetric efficiency
Long life
Full flow spline cooling
High pressure shaft seal
High flow shaft seal cooling
High starting torque
Stainless steel housing and shaft
Glass-filled polypropylene rear cover
Operates under water or in harsh environments
High pressure shaft seal to resist leakage
Full flow spline lubrication for long life
High volumetric efficiency
Full flow spline cooling
High pressure shaft seal
High flow shaft seal cooling
High starting torque
High side load capacity
Long life

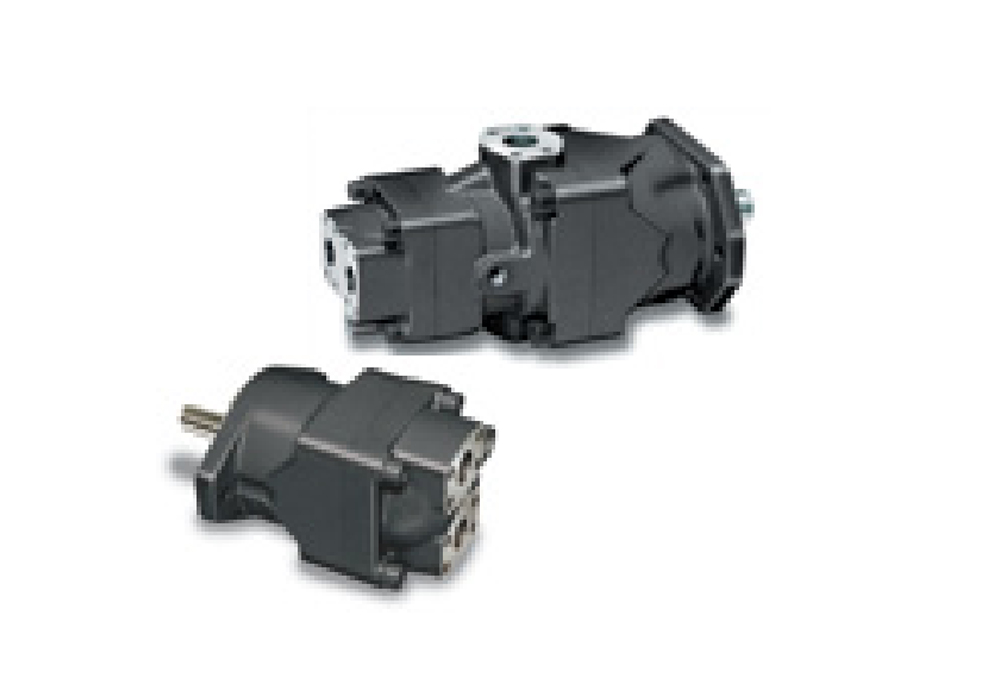

The M3 and M4 Series vane motors are fixed displacement and designed especially for severe duty applications. The balance vane cartridge concept provides high volumetric efficiency, longer life, lower noise, and a high starting torque efficiency. The double motor is ideal for applications to obtain three speed operation.

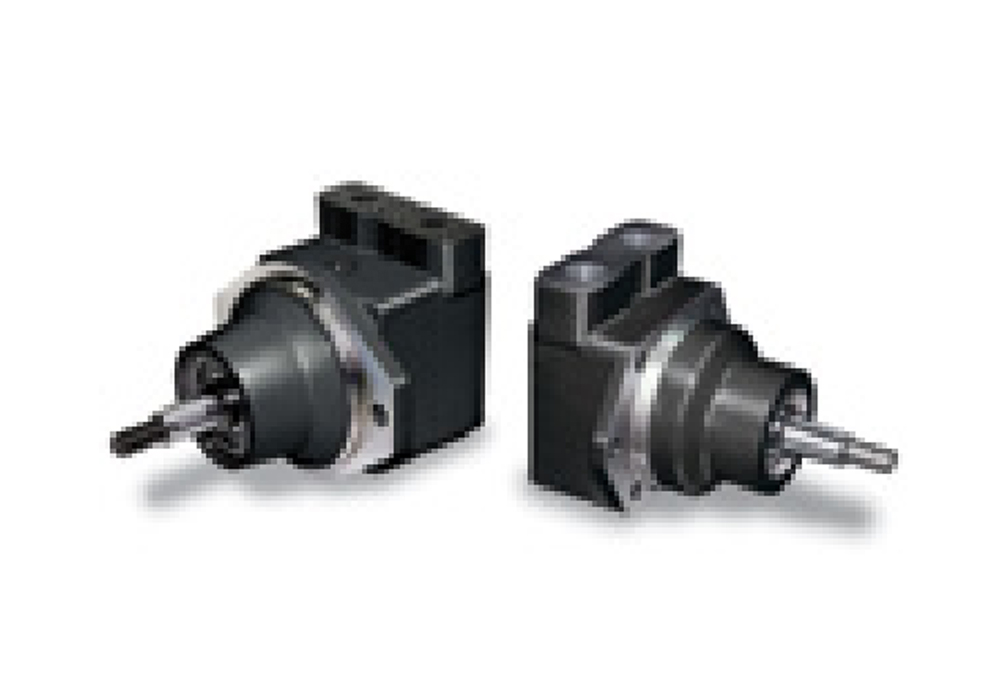

Keep the M5 fixed displacement vane motors in mind when your application requires radial and/or axial shaft loads. The fan-drive version comes equipped with a rugged double row bearing that can eliminate the need for external supports. An integrated proportional valve option provides speed control for fan circuits. Both fan-drive and standard versions use the same high performance cartridge, giving repeatable speed at specified flows.
High starting torque typically 90% of running torque
Smooth output torque throughout the entire speed range
Bi-directional operation
High pressure shaft seal
Standard SAE mounting
Long life and quiet operation
Heavy duty bearings
High starting torque typically 90% of running torque
Smooth output torque throughout the entire speed range
Bi-directional operation
High pressure shaft seal
Standard SAE mounting
Long life and quiet operation
Heavy duty bearings

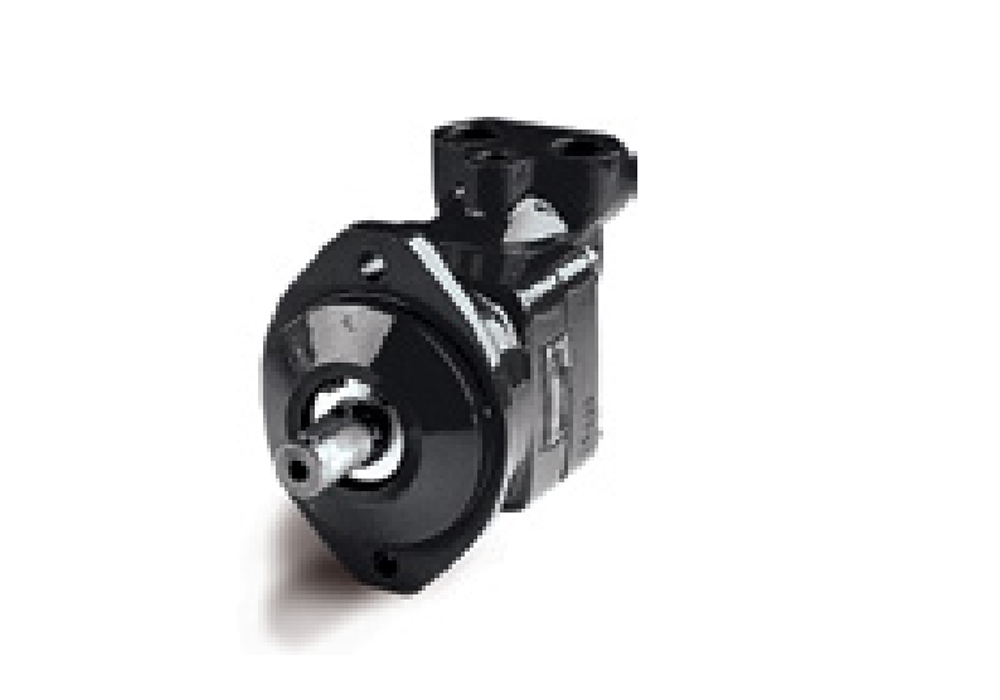

F11 is the well proven bent-axis, fixed displacement heavy-duty motor / pump series. They can be used in numerous applications in on both open and closed loop circuits.
Very high motor operating speeds
Pressures to 420 bar (6000 psi)
Efficient (low losses)
Accepts high external shaft loads
SAE, ISO and Cartridge mount available Compact, lightweight motor and pump
Integral anti-cavitation valves available on certain displacements
Good resistance to vibrations and temperature shocks
Proven reliability
Easy to service with very few moving parts
Heavy duty roller bearings

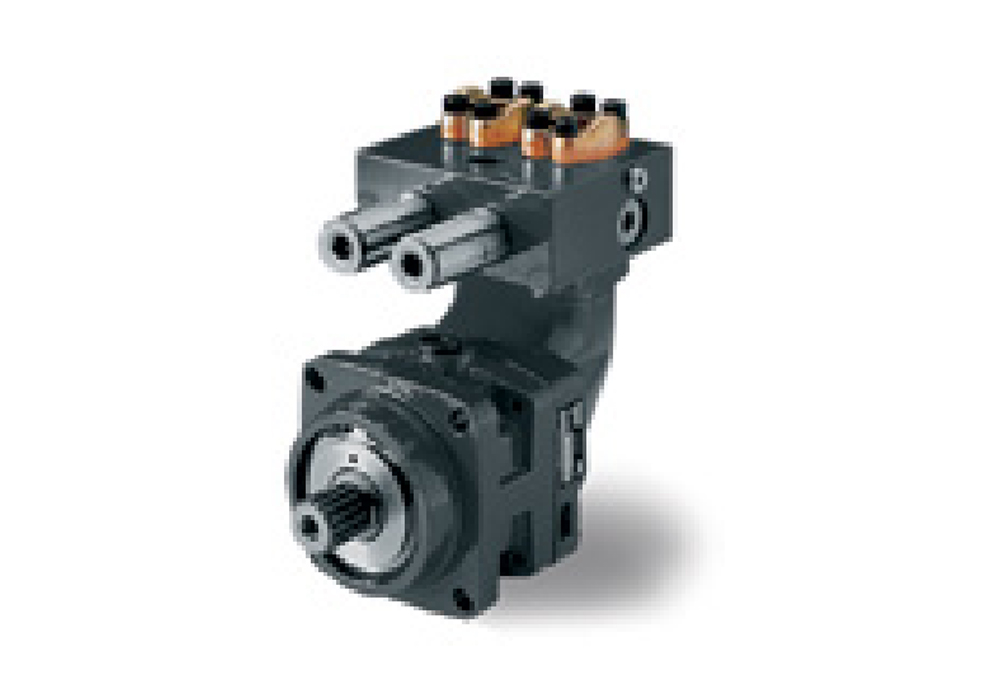

Series F12 is the high performance bent-axis, fixed displacement heavy-duty motor/pump series. They can be used in numerous applications at unusually high shaft speeds.
Very high motor operating speeds
Pressures to 480 bar (7000 psi)
High starting torque
Very high power capability
High overall efficiency
Compact, lightweight motor and pump
Laminated piston ring provides low internal leakage and thermal shock resistance
Accessory valves available
ISO, SAE and cartridge versions available
Proven reliability
Easy to service with very few moving parts
Super-shockless swing relief valve
High volumetric efficiency
Full flow spline cooling
High pressure shaft seal
High flow shaft seal cooling
High starting torque
High side load capacity
Long life
