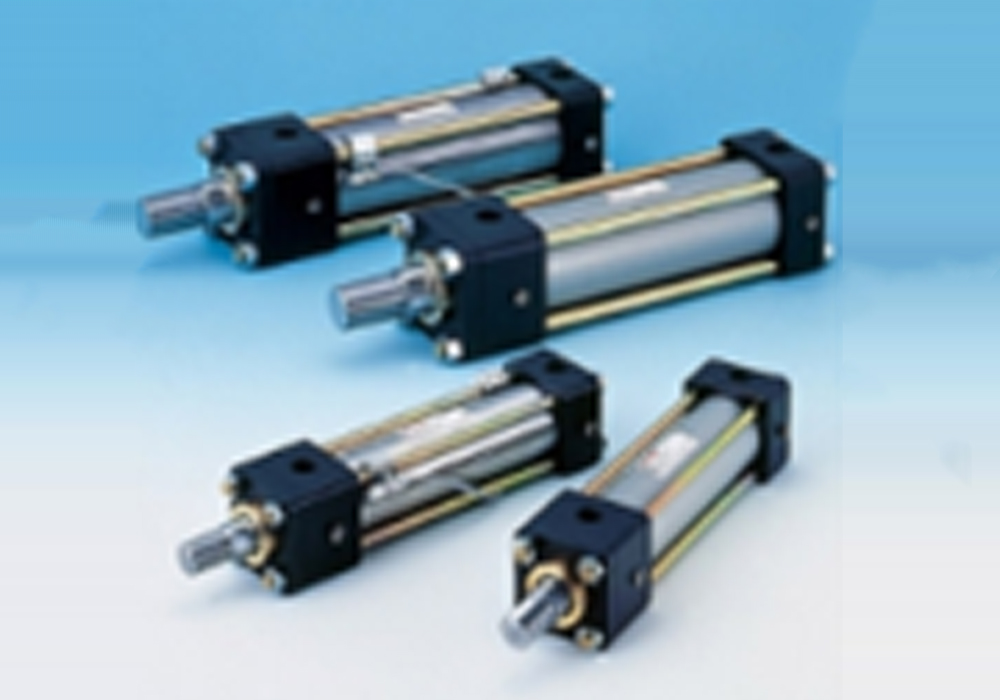

High-performance cushion built in hydraulic cylinders
Double acting hydraulic cylinders for 7/14 MPa with bore from 32 mm to 250 mm.
High-performance cushion reduces a shock at stroke-end.
Newly designed cushion valve allows easy cushion adjustment.
The drop prevention mechanism and looseness preventive lock nut have been adopted as safety measures for the cushion valve.
Wide variety of new-type small sensors for better maintainability.
Replaceable seals.
Rod end specifications of two types: female and male threads.
Compared to the tie-rod type cylinders, the installation space is reduced to approx. 1/2.
Cylinders with magnetic proximity sensors are standardized.
Hydrogenated nitride rubber (HNBR) is adopted as a seal material for sliding parts.
Square rings are adopted for the piston seals.

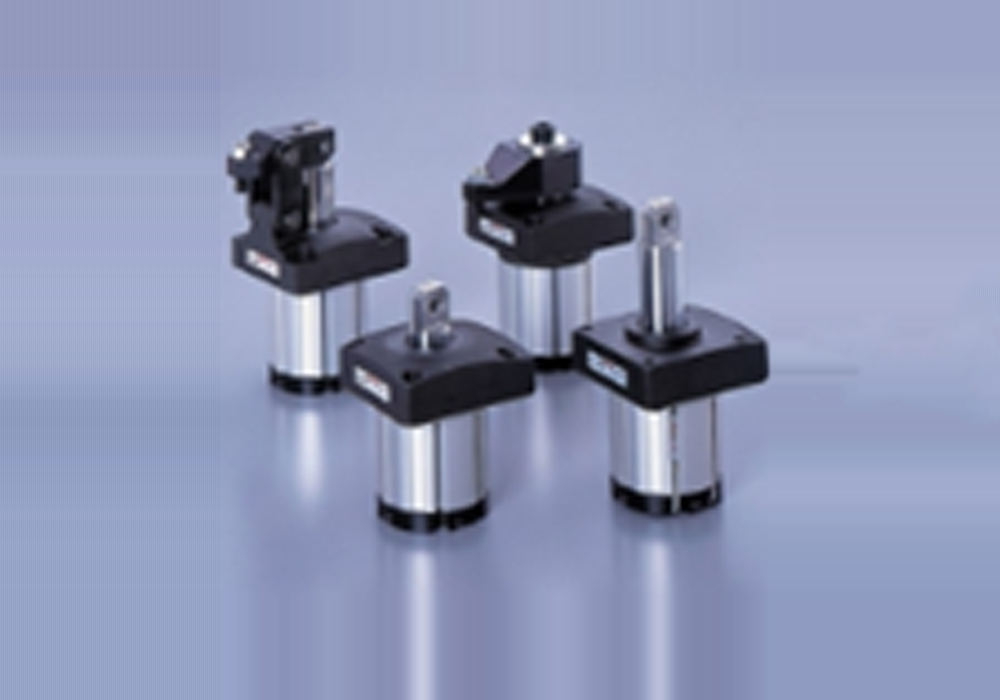

A wide variation of compact units
Hydraulic (7 MPa) models and pneumatic models of the same size are available.
The new design reduces the overall length and promotes downsizing of jigs.
The newly applied gasket type seals on the rod cover and jig surface are easy to fit and reliable.
The easy-to-use magnetic proximity sensor embedded in the body facilitates confirmation of clamping and unclamping state.
TAIYO Hydraulic Equipments are highly admired by market since long time ago which developed and produced by original high quality engineering power. Especially Hydraulic cylinder, we are tde top of tde market and has an ace-high reputation from market. We offer various model from general purpose standard to custom made design which meet any customer demanded.
