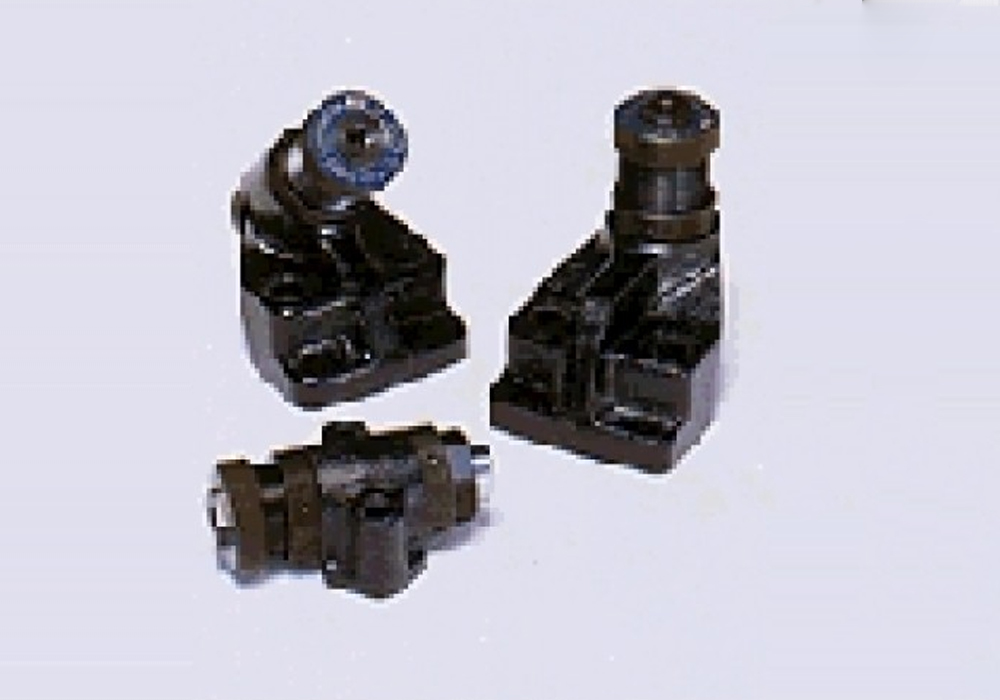

System which converts pneumatic pressure to hydraulic pressure with a booster and generates hydraulic pressure of up to 17.5 MPa to powerfully actuate small-size clamp head.
Suitable for lifting work or operations requiring high output for clamp head throughout the stroke
The use of hydraulic pressure ensures constant, uniform and reliable force.

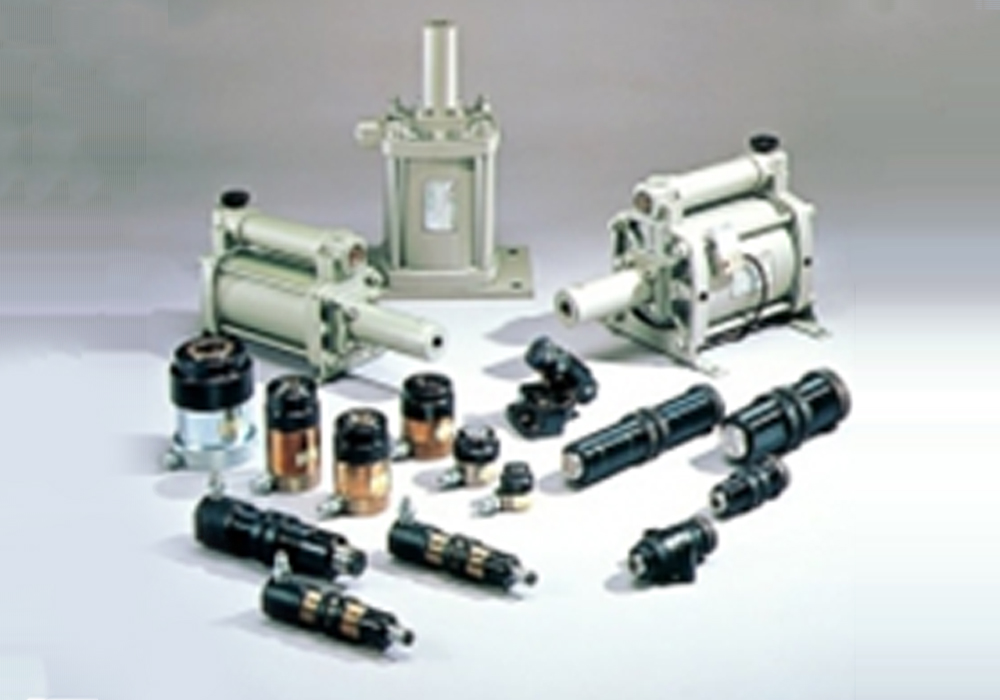

Low pneumatic pressure is converted to high hydraulic pressure by the principle of booster, and the hydraulic pressure is given to the outside by the hydraulic piston to use it as power. Easy-to-use small and light boosters integral with clamp head.
Cylindrical shape with reduced overall length and external dimensions.
Since the cylinder volume is extremely small, the air consumption is very low.
The mounting position can be adjusted with the clamp ring. The stroke is so short, that they can be tightened quickly.
