Designed for use in harsh environments
Multiple valve module add-on options available - cross over vent, counter-balance & solenoid ready
Designed for direct match mount to numerous process valve manufacturers which allows for reduced space and lower assembly costs
Multiple shaft configurations available. Direct mounting capabilities eliminates the need for a shaft coupler, thus reducing overall size and material cost
Developed in conjunction with several OEMs specifically in the oil & gas market for fracking applications

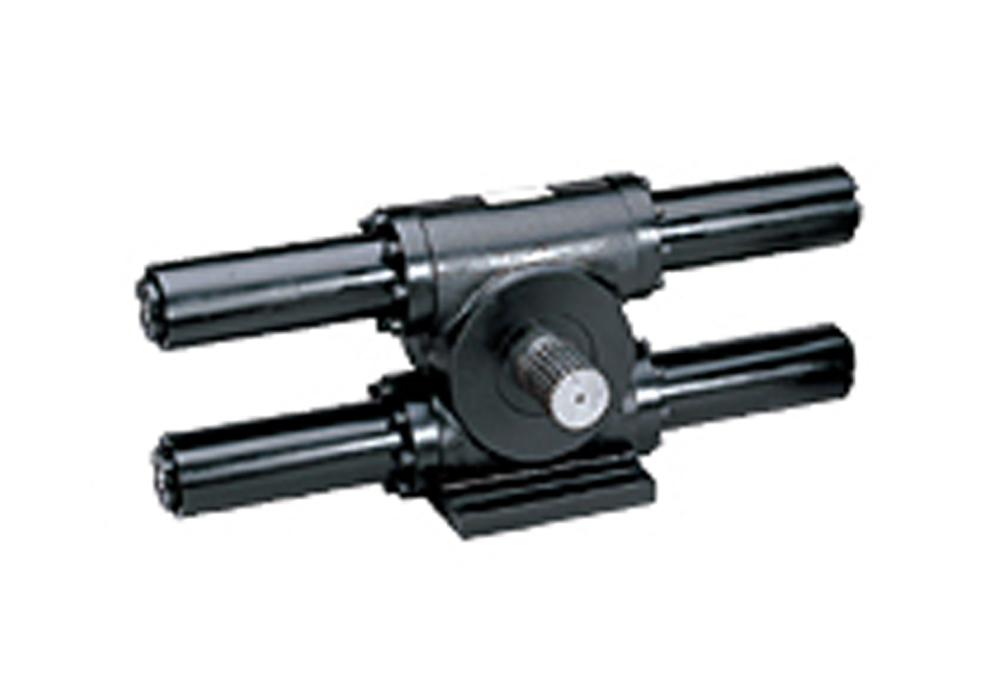

Rack and pinion rotary actuator provides high power at low rotational speed
Gearing and cylinders selfcontained and protected against contamination
Standard and custom rotations available
Full range of options

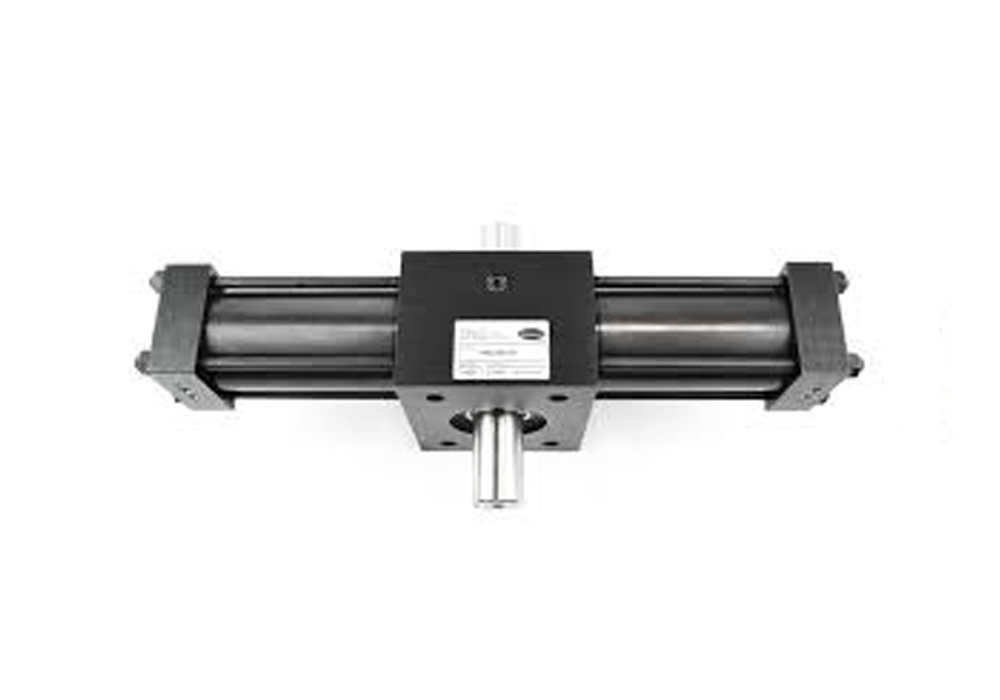

Rotary actuator for low pressure applications
Rack and pinion gearing with lightweight aluminum housing
Three positions of rotation
Full range of options

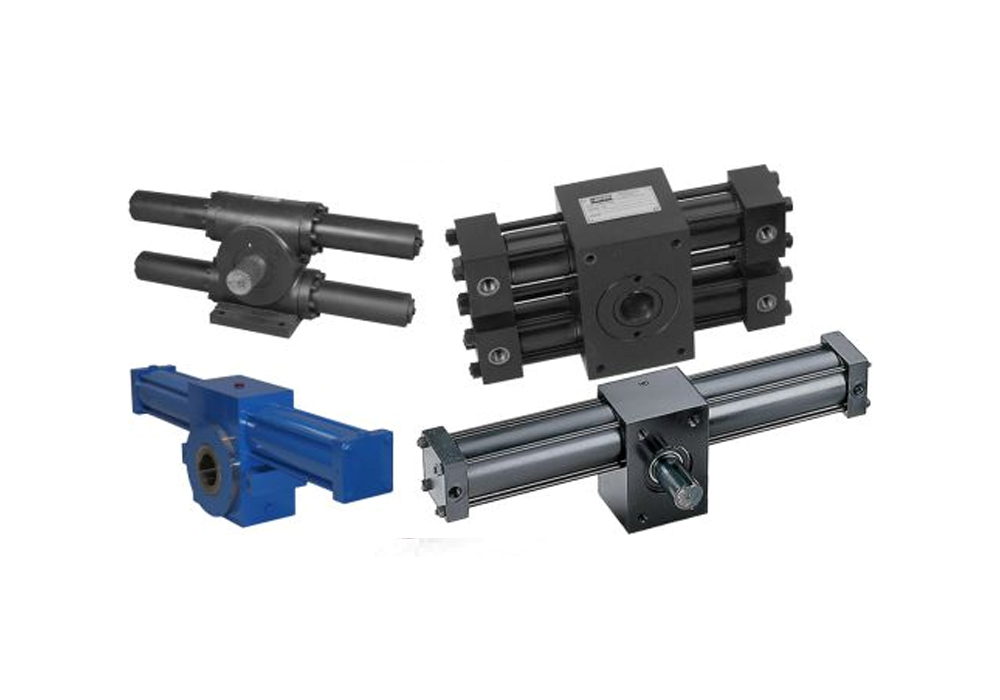

Non-tierod rack and pinion actuator provides dependability, improved durability and enhanced ease of maintenance
Wide range of performance and features

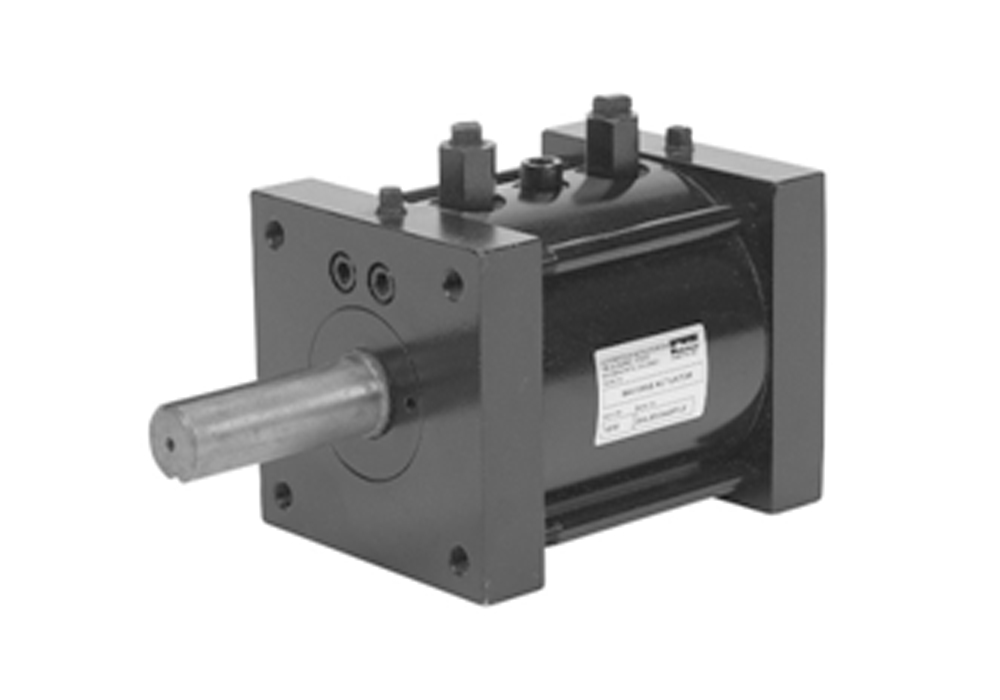

Compact, single or double vane actuators
100 degrees rotation for double vane; 280 series rotation in single vane
Wide range of options

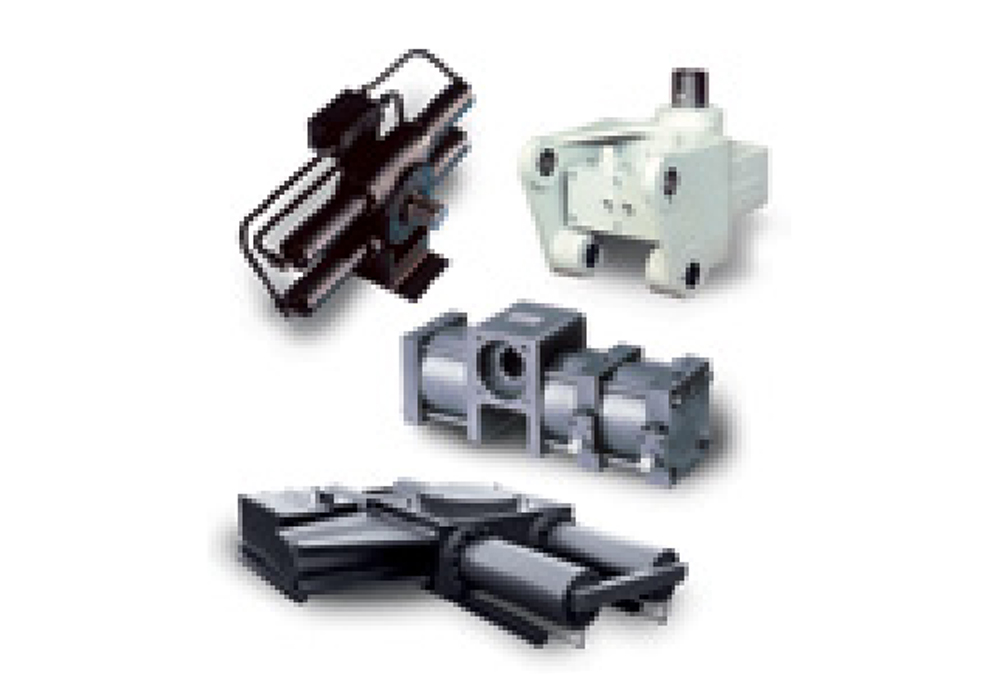

Durability features that provide 99% reliability in 10 million cycles. Custom designed to integrate as part of customer structure. Housing and shafting designed with special materials and features to carry high induced loads.
Rotations to 1080°, variety of speeds, special shafting, mounting, and porting accommodations Units with minimal backlash, combined linear and rotational motion functions Integrated with control valve packages, position feedback for total system solutions Titanium, monel, stainless steels, bronzes Compliance to customer specs and agency certifications–ABS, FDA, UL/CE, SAE, military Special environments/applications – robotic, submerged, clean room, medical, PC chips Proprietary sizing analysis programs applied to assure safety margins, reliability predictions
