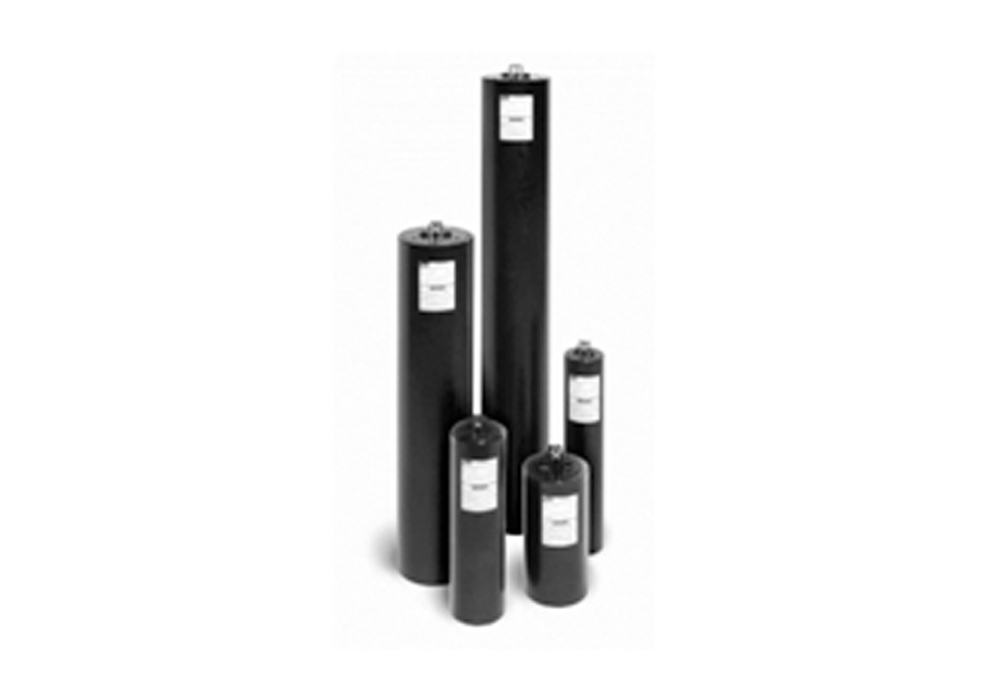

Low temperature solutions to -50°F
Over 50 standard capacities from 5 cu. in. (.075 liters) to 50 gallons (189 liters)
3", 4", 6", 7", 8", 9" and 12" nominal bore sizes
207, 276 and 350 bar (3000, 4000 and 5000 psi) operating pressures
Five-bladed V-O-ring piston seals in five standard seal compounds Piston Accumulators
Accumulator and gas bottle configurations
CRN/CSA, AS1210, DNV, ABS, NR-13, SELO, ASME, CE and other certifications available
Custom capacities over 200 gallons and 20,000 psi
Stainless steel models for water/seawater/chemical service

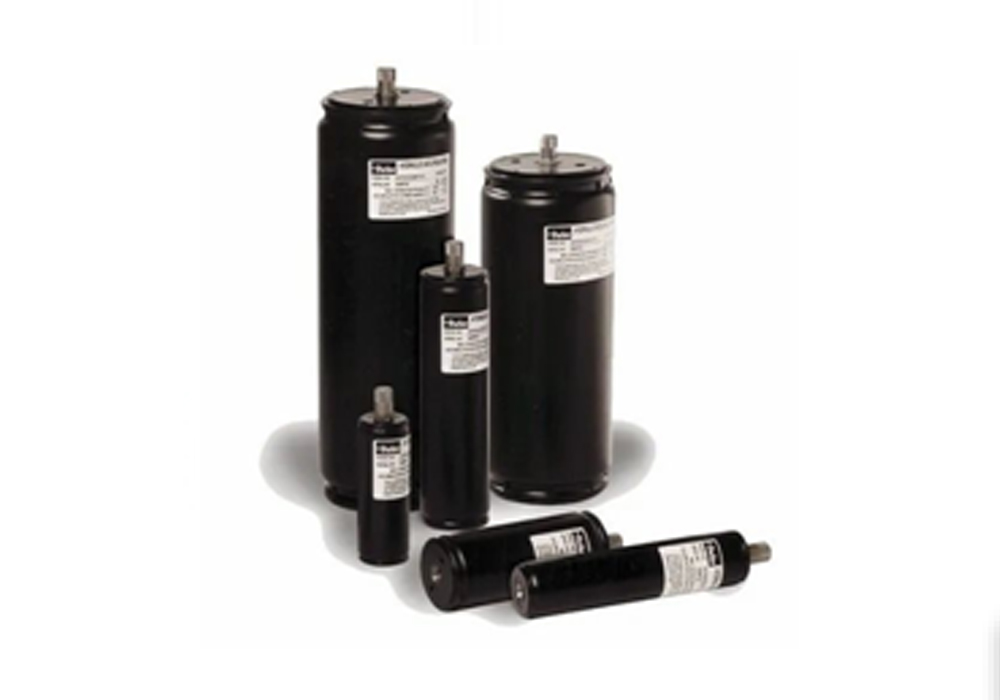

Compact, crimped piston accumulator design
1¹⁄2", 2", 3" and 4" bore sizes (40, 50, 80, 100 mm)
Standard capacities from 5 cu. in. (.075 liters) to 488 cu. in. (8 liters)
276 bar (4000 psi) and 345 bar (5000 psi) operating pressure
Low-cost, non-repairable design
Multiple port options
No gas valve option
Quick delivery

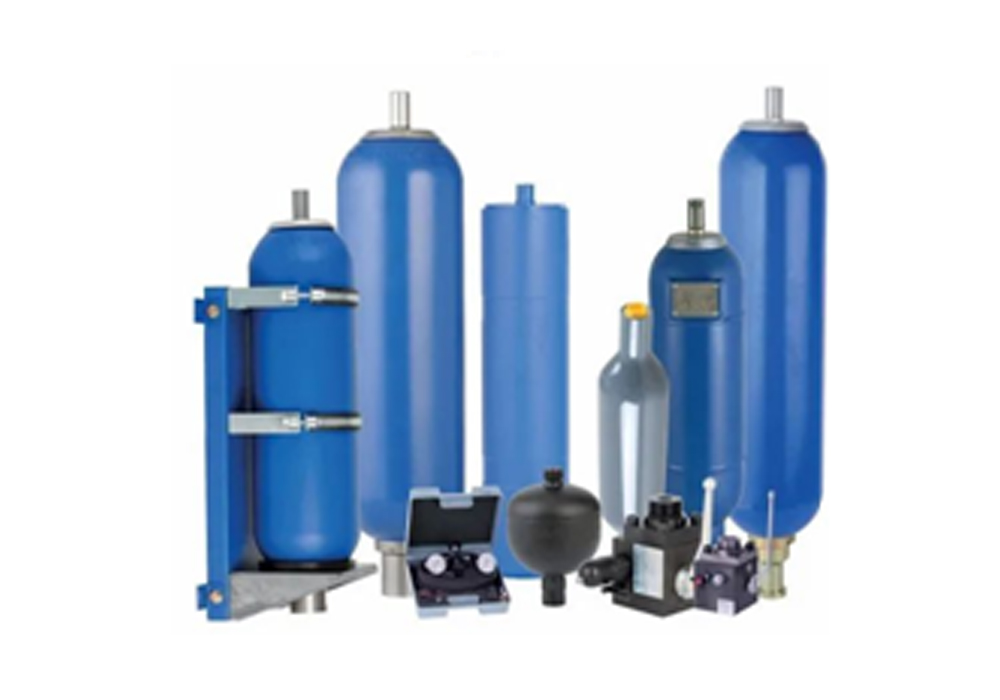

Standard capacities from 10 cu. in. (.16 liters) to 15 gallons (56 liters)
25 & 40 gallon capacity available
Maximum operating pressures up to 455 bar (6600 psi)
Bladders molded in-house
Six bladder compounds to suit a variety of fluids and temperatures Bladder Accumulators
Bottom and top repairable; high-flow, transfer barriers and gas bottles
Water/chemical service available
CRN/CSA, AS1210, DNV, ABS, NR-13, ASME, CE and other certifications available

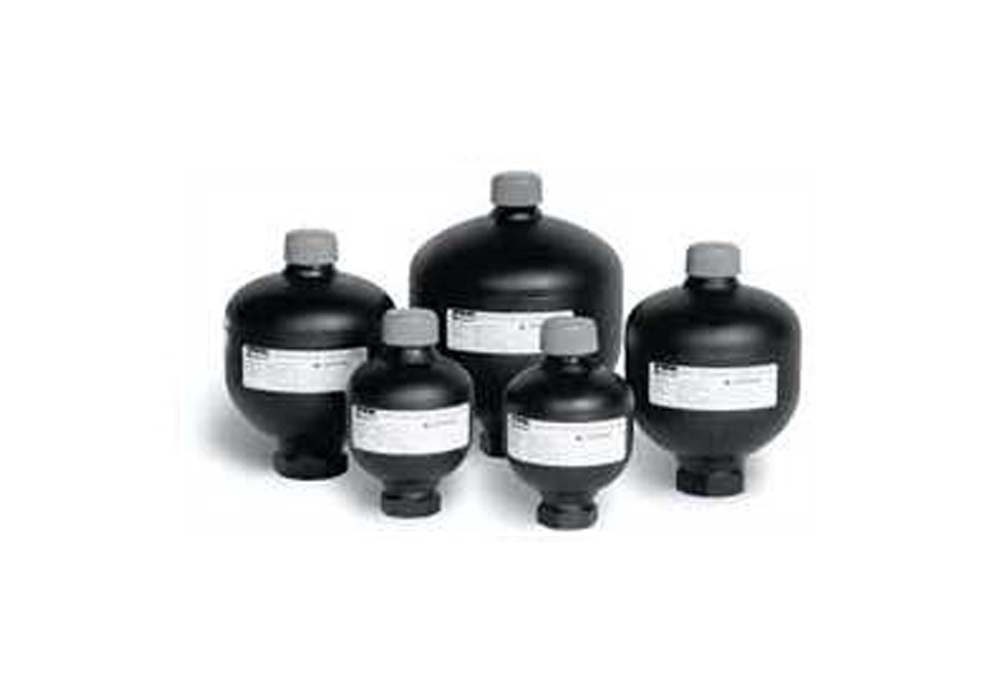

Standard capacities from 5 cu. in. (.075 liters) to 170 cu. in. (2.8 liters)
Maximum operating pressures up to 250 bar (3600 psi) Diaphragm Accumulators
Compact and lightweight
Low-cost, non-repairable design
Quick responding diaphragms of hydrin elastomer

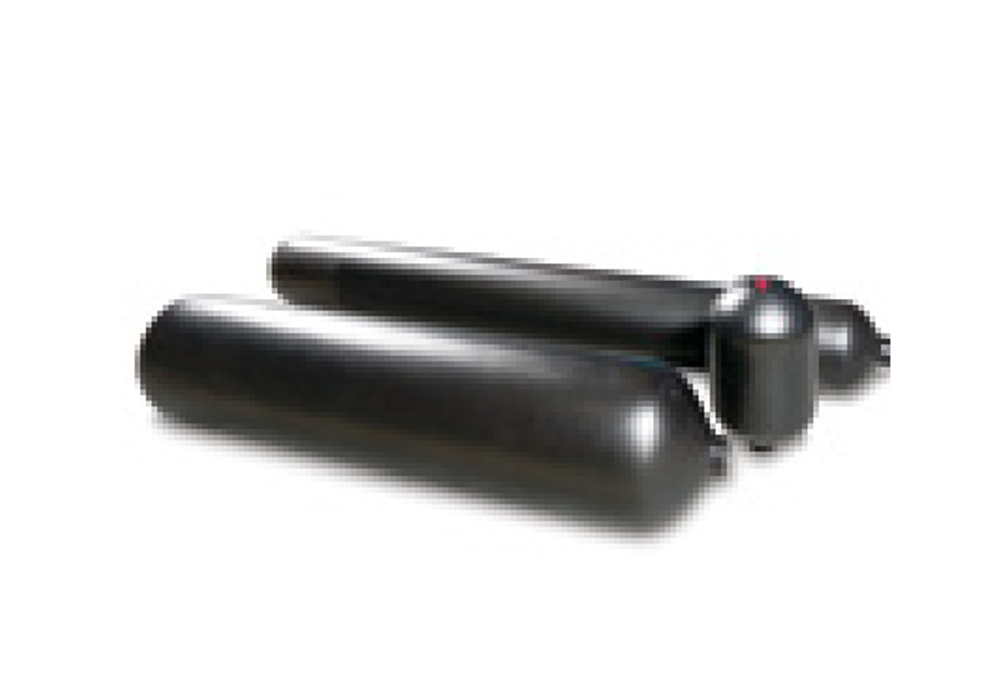

Standard capacities from 2.5 gallons to 100 gallons
Maximum operating pressures up to 4000 psi ASME, 330 bar CE Gas Bottles
High strength alloy steel
Single piece spun shell
ASME and CE certification
Reduces pulsations and noise attenuation
Compact size, inline mounting
207 and 345 bar (3000 and 5000 psi) models
NPT, BSPP, SAE and split flange connections
Stainless steel model for water/chemical service

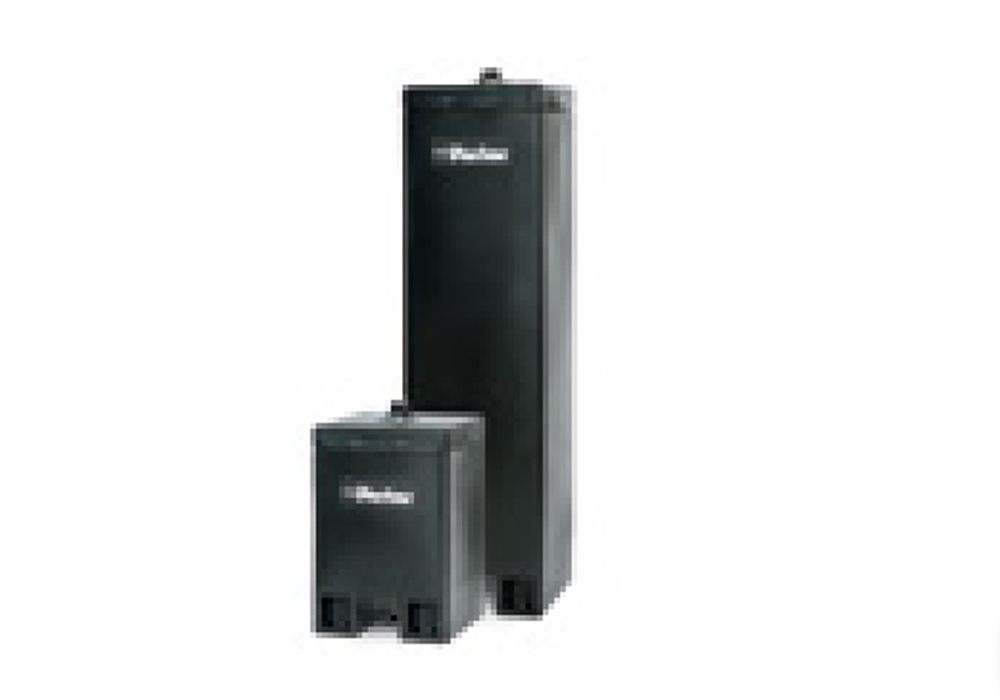

Protects hydraulic system from contamination
Closes off hydraulic system to protect from evaporation (water/Glycol)
Standard capacities from 2.5 gallons (9.5 liters) to 100 gallons (378 liters)
Six bladder polymers for a wide range of fluids and temperatures
Choice of steel or Polyethylene shells depending on size
Easy to use installation kits available
Optional pressure/vacuum breaker

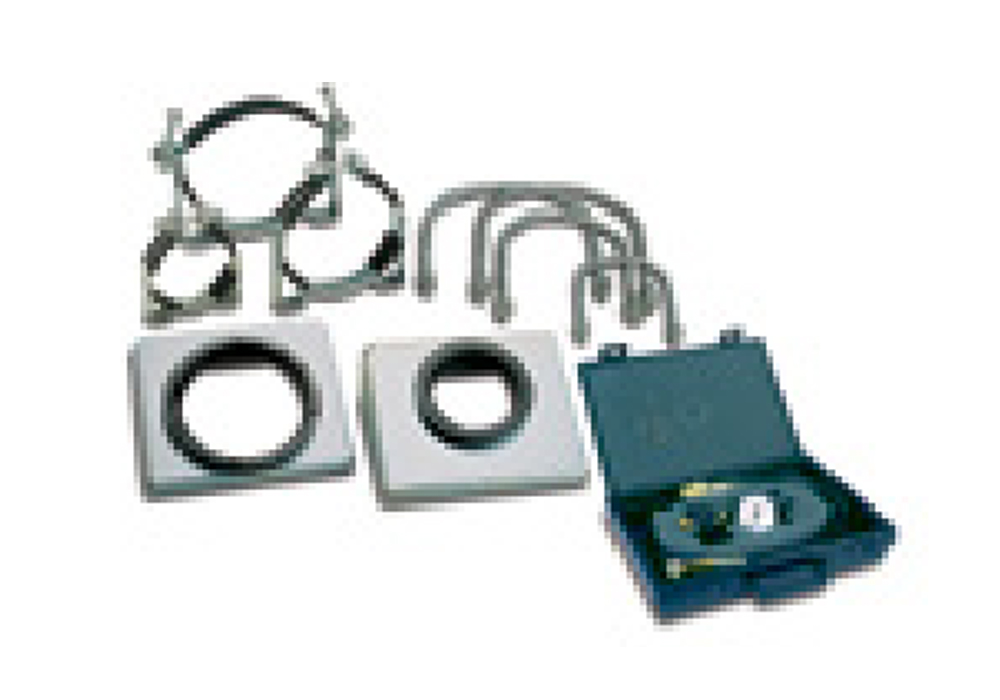

Charging and gauging equipment for safe maintenance of hydraulic accumulators
Common industrial gauge adapters and assemblies
Gauge adapters and assemblies
Accumulator repair tools
Mounting clamps and base brackets
U-Bolt mounting hardware

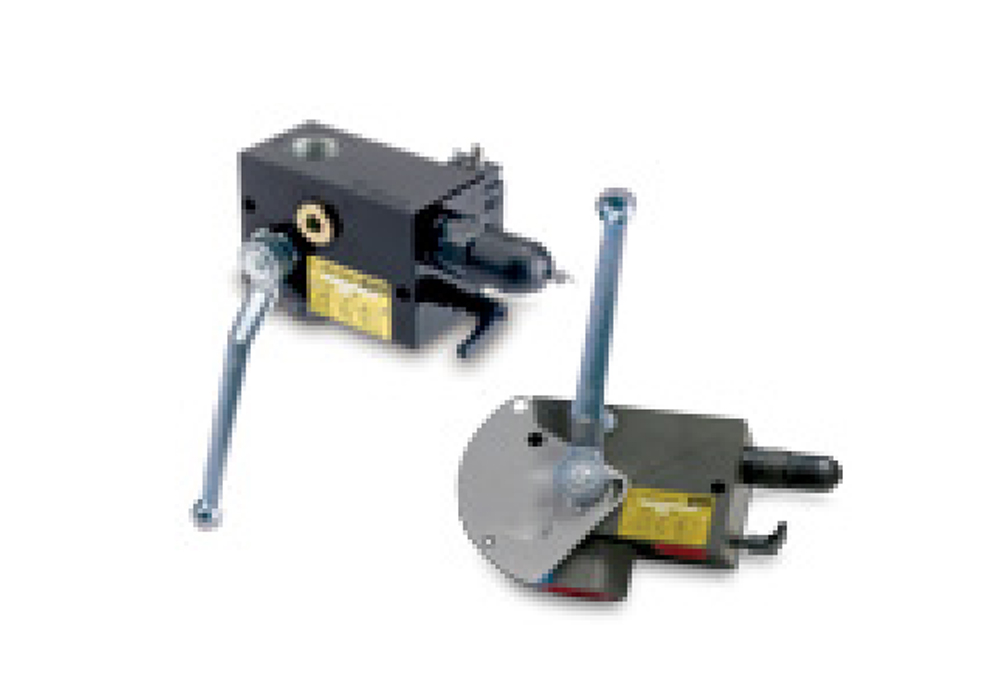

Combines features of multiple components needed to safely isolate, protect & discharge a hydraulic accumulator
Integrated design leads to less plumbing, labor and leak points
– Pressure relief valve
– Shut-off valve
– Manual discharge valve
Electrically operated discharge valve (optional)
Lock-out device (optional)
Working pressures up to 350 bar (5075 psi)
Meets the European Pressure Equipment Directive (PED)

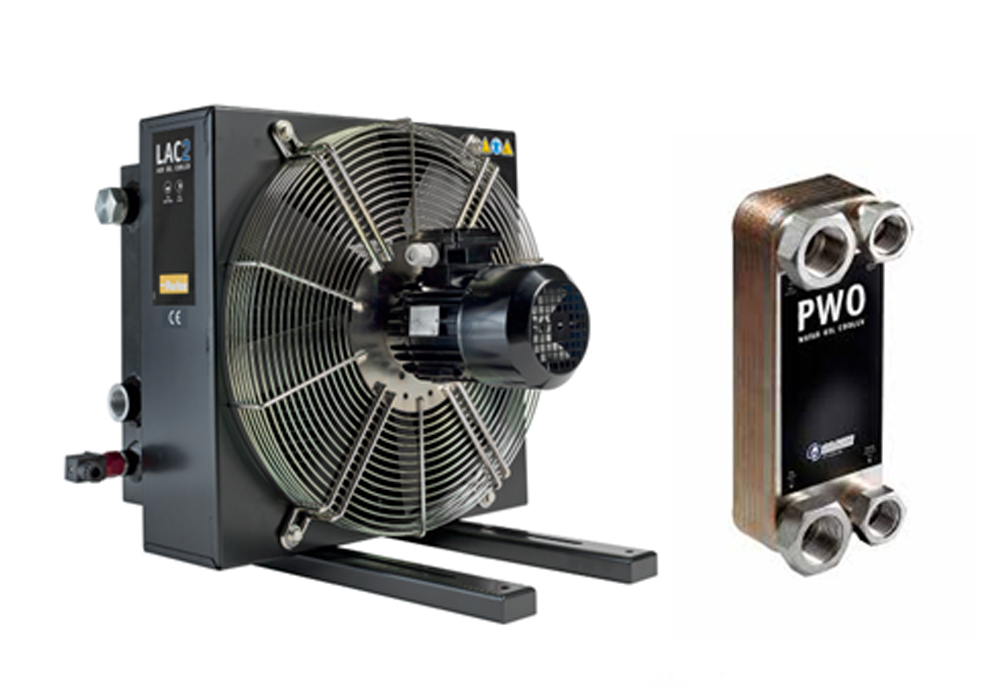

Parker coolers offer a light weight, compact design with high cooling capacity
Robust bar and plate construction ensures reliable and long lasting cooling with low service and maintenance costs
Optimized fan design and material for low noise operation
Available with AC motor and integrated circulation pump configurations (air/oil cooling) and water/oil brazed plate designs
Cooling capacity up to 400 HP (fan driven AC motor), 60 HP (offline cooling), and 70 HP (brazed plate water cooling)
Design engineers work with customers to provide custom and combination coolers to meet the unique cooling needs of most applications
