Heavy duty service with industrial tie rod construction
Nominal pressures up to 3000 psi (207 bar)
Standard bore sizes 1.50" – 6.00"
Piston rod diameters 0.625" – 4.000"
Strokes available in any practical length
18 standard mounting styles
Exclusive “Jewel” Rod Gland with TS-2000 Rod Seal
Parker stepped cushion for increased performance and productivity
Rod ends: four standard choices, specials to order
Heavy duty service with industrial tie rod construction
Nominal pressures up to 3000 psi (207 bar)
Standard bore sizes 7.00" – 20.00"
Piston rod diameters 3.000" – 10.000"
Strokes available in any practical length
16 standard mounting styles
Parker stepped cushion for increased performance and productivity
Rod ends: four standard choices, specials to order

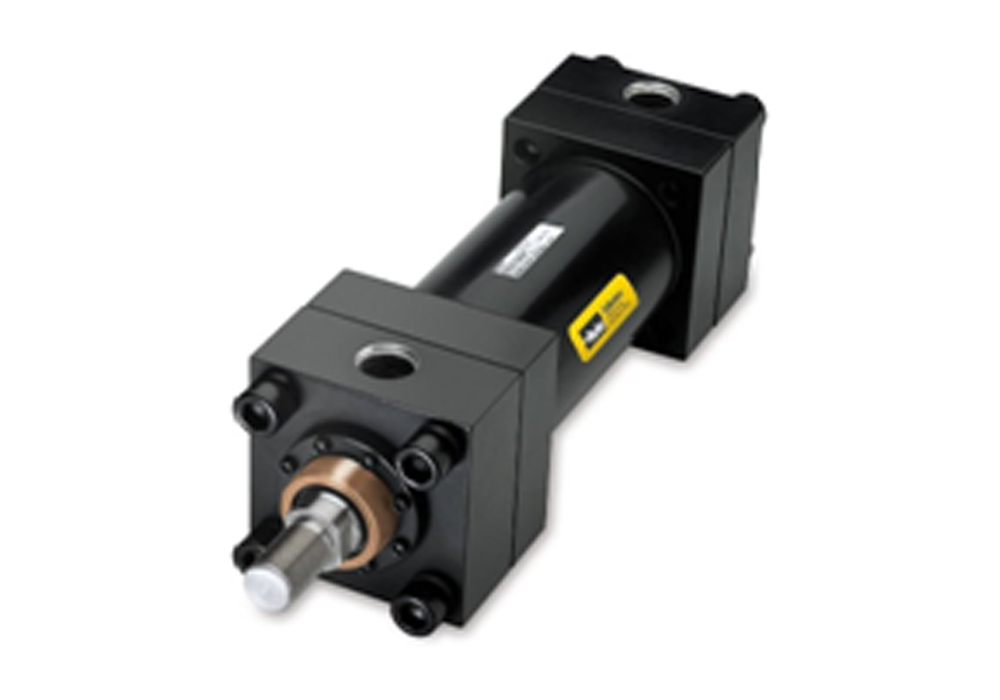

Medium duty service with industrial tie rod construction
Nominal pressure up to 1000 psi (70 bar)
Standard bore sizes 1.00" – 8.00"
Piston rod diameters 0.500" – 5.500"
Strokes available in any practical length
15 standard mounting styles
Exclusive “Jewel” Rod Gland with TS-2000 Rod Seal
Parker stepped cushion for increased performance and productivity
Rod ends: four standard choices, specials to order

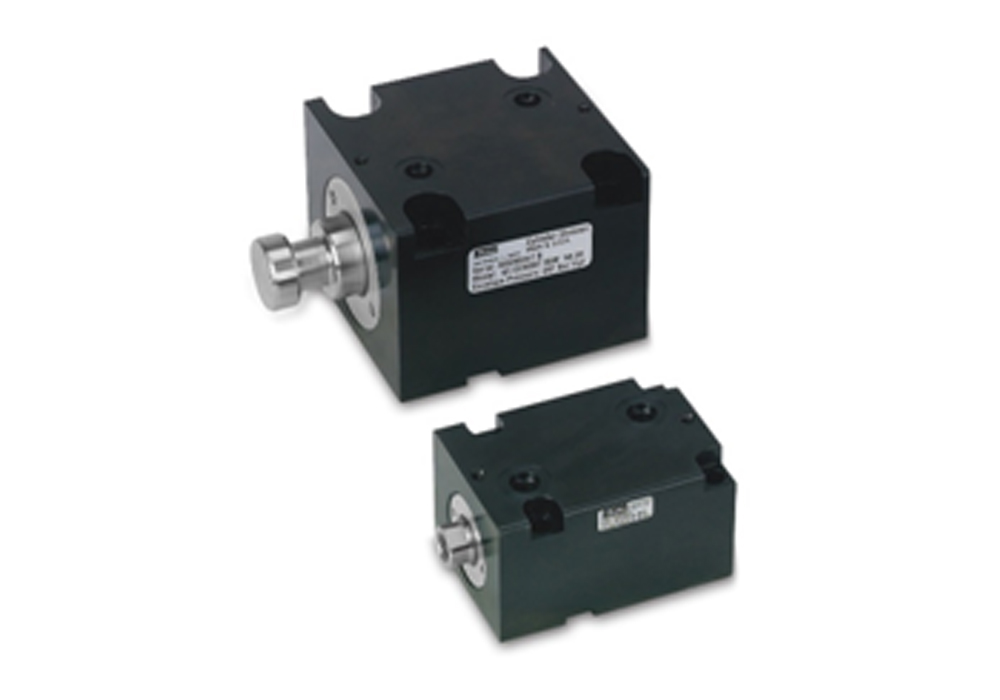

Compact hydraulic cylinder
Repairable construction, steel body design
Bore sizes from 20mm – 80mm
Strokes in 1mm increments up to 100mm dependent on bore size
Piston rod diameters 12mm – 45mm
Single and double rod designs
13 standard mounting styles
Nominal pressures up to 207 bar (3000 psi)
Four standard rod end styles with special ends available
Available with SAE, NPTF and BSPP ports
Manifold ports available on foot mounting
Compact hydraulic cylinder
Repairable construction, aluminum alloy extruded design
Bore sizes from 20mm – 100mm
Strokes in 1mm increments up to 150mm dependent on bore size
Piston rod diameters 12mm – 56mm
Single and double rod designs
6 standard mounting styles
Nominal pressures up to 140 bar (2030 psi) dependent on bore size
Four standard rod end styles with special ends available
Available with SAE, NPTF and BSPP ports
Magnetic piston and position sensing switches available

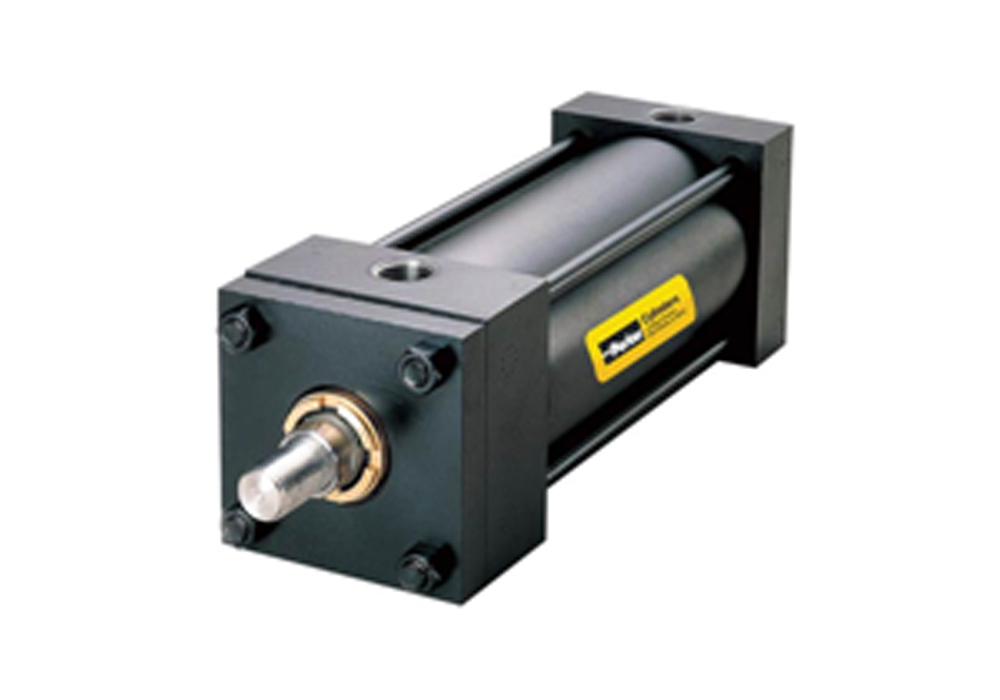

Nominal pressures up to 210 bar (3045 psi)
Metric hydraulic cylinders with bore sizes 25 mm – 200 mm
ISO 6020/2 mounting interchangeable
Up to three rod sizes per bore
Wide range of mounting accessories
Up to three male and three female rod end threads per bore
Strokes available in any practical length
Piston rod diameters 12 mm – 140 mm
Single and double rod designs
12 standard mounting styles
Exclusive “Jewel” Rod Gland with TS-2000 Rod Seal
Seal types to suit a wide variety of operating environments
Parker stepped cushion for increased performance and productivity

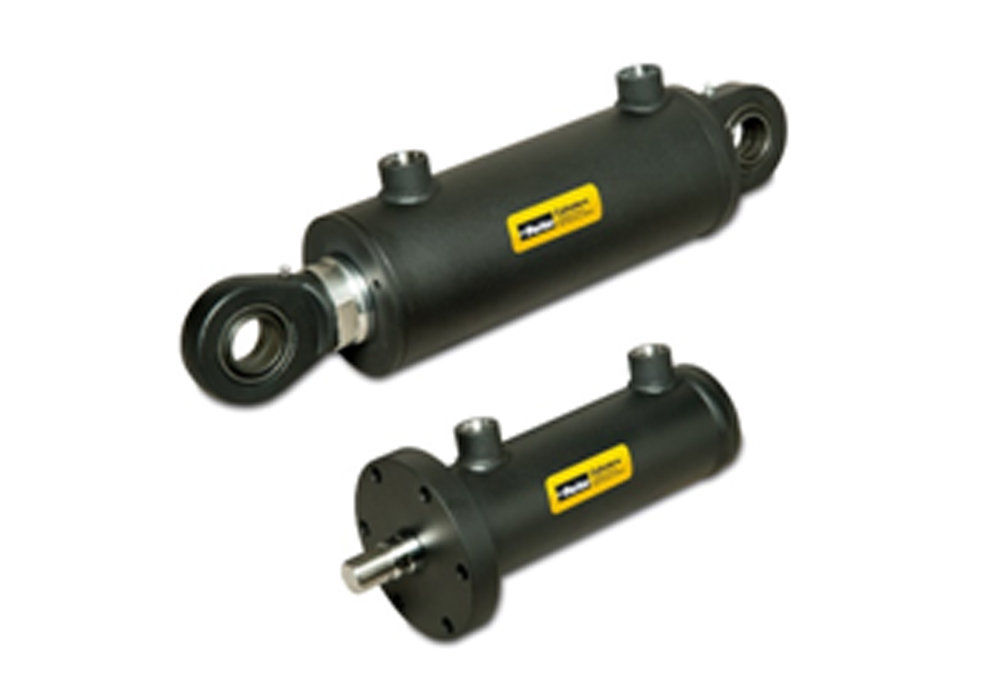

Heavy duty hydraulic roundline cylinder
Standard threaded head and welded cap construction
Nominal pressures up to 3000 psi (207 Bar)
Bore sizes from 1.50" – 8.00"
Piston rod diameters 0.625" - 5.500"
Strokes available in any practical length
Rod ends: five standard choices, specials to order
Nine standard mounting styles
All steel construction
Elastomeric seals throughout
Standard metric hydraulic type tie rod construction
Opposed preloaded angular contact bearings
Roller screw drive system
Inline and parallel gear drive configurations
Speeds up to 40 inches per second (1 m/s)
Continuous thrust ratings up to 80,000 lbs. (356 kN)
Strokes from 50 mm to 2000 mm in 1 mm increment
Anti-rotate and rotatable rod configurations
Other motor mounts available
Linear displacement transducer (LDT) feedback

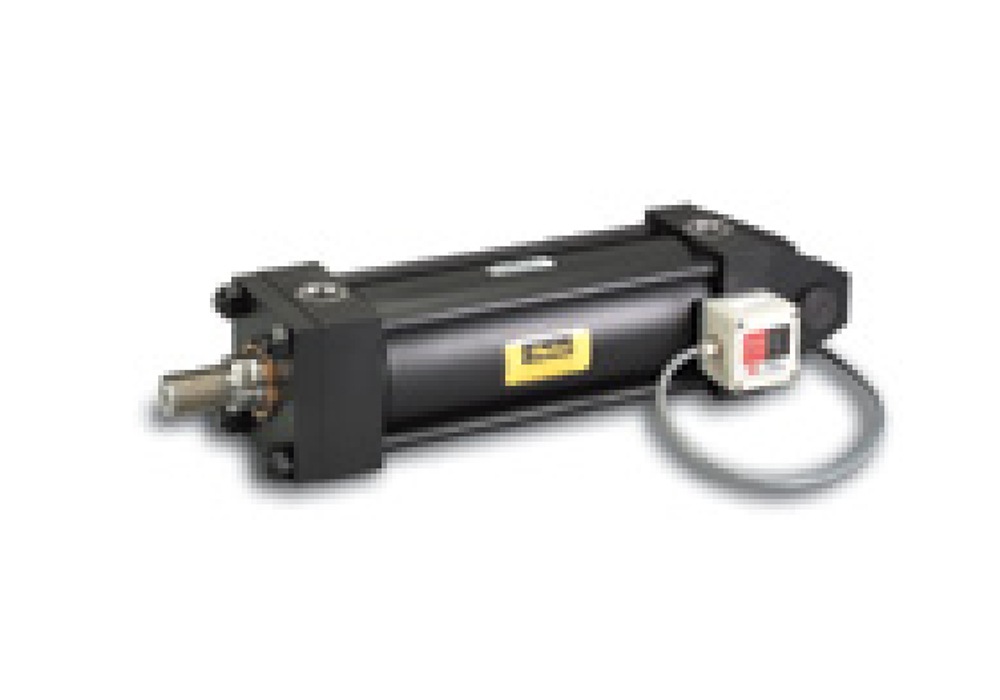

WaveScale embedded design maintains NFPA dimensions 2.00" – 6.00" bores
Eliminates need for limit switches, deceleration valves, shock absorbers and mechanical linkages in many applications
Nominal pressures up to 3000 psi (207 bar)
Piston rod diameters 1.000" – 4.000"
Wide variety of stroke lengths available
Exclusive “Jewel” Rod Gland with TS-2000 Rod Seal
Parker stepped cushion for increased performance and productivity
Low friction seals available
Seven bolt-on and four integral manifolds available
Simplifies machine design and reduces number of hydraulic lines
Integral mounted valve eliminates assembly time and fittings
Suitable for hydraulic pneumatic and electromechanical cylinder applications
Eliminates need for limit switches, deceleration valves, shock absorbers and mechanical linkages in many applications
Nominal pressures up to 3000 psi (207 bar)
Piston rod diameters 1.000" – 10.000"
Stroke lengths to 20.00'
0-10v, 4-20mA – J1939 outputs
Sustains performance in applications exposed to vibration, dust, gravel, corrosives, chemicals, axial load, side load, and immersion
Features highly sensitive health monitoring to detect and diagnose potential cylinder malfunctions before they can disrupt operations

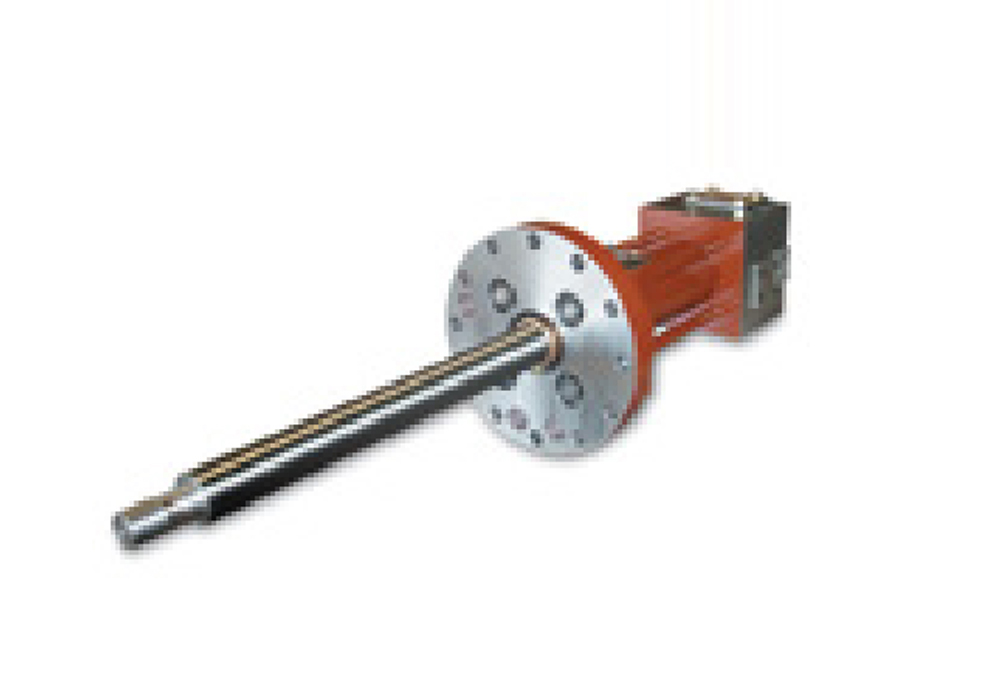

Bores to 48.00" (1219 mm)
Strokes to 876" (22250 mm)
Operating pressures to 15,000 psi (1034 bar)
Intensifier pressures to 60,000 psi (4138 bar)
Welded, bolted/mill-type, tie rod, telescopic and crimped construction styles
Many construction materials:
– Carbon steels
– Stainless steels
– Exotic steels
– Aluminum
– Composite
Wide variety of rod coatings:
- Hard Chrome
- Chrome-Over-Nickel
- Global Shield
- Nitrotec/Nitride
- Ceramic
- Laser Clad
Cylinder assemblies can integrate other hydraulic products:
- Fluid connectors, manifolds, valves, accumulators, filtration, etc.
Available third party approvals and certifications include: ABS, DNV, BV, USCG, Lloyd’s Register, ASME, Nuclear and MIL-I-45208
Common options include cartridge/counterbalance valves, epoxy paint, continuous feedback devices, low friction seals, mechanical linkage, etc.
Custom cylinders are designed to the customer application and specifications.
